File:Pullrod Forces2.png
Jump to navigation
Jump to search
Size of this preview: 703 × 599 pixels. Other resolutions: 282 × 240 pixels | 1,187 × 1,012 pixels.
Original file (1,187 × 1,012 pixels, file size: 418 KB, MIME type: image/png)

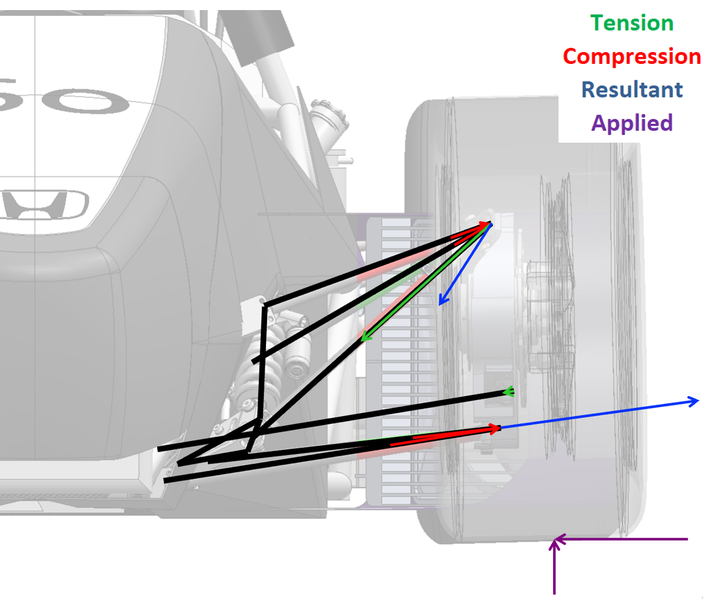

2.5G cornering, 0.5G braking, (outside, front wheel shown). The upper wishbone applies a vertical force to the wheel assembly, increasing the load on the pull-rod.
